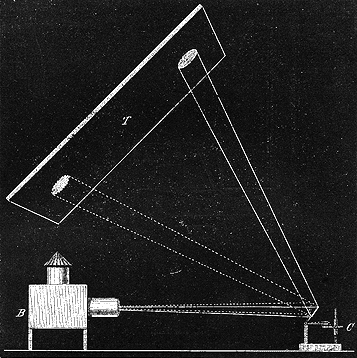

Le cœur mis à nu - continued... A still-contracting heart cut out of a frog was posed on a small tripod. Small pieces of cork were placed on the two heart chambers. The cork pieces were connected with angled steel sticks. At the end of each stick was a light mirror plate that moved forward or backward when the corresponding heart chamber was contracting. Czermak, 1879 (Projector) By means of a device "similar to a laterna magica" (Czermak), a ray of light was directed onto both mirror plates. The plates reflected the light onto a screen. In the darkened lecture hall, the auditorium could see an enlarged image of heart movement. Reference: Schmidgen, Henning. 2001. Le cœur mis à nu. Movement-Images in Experimental Physiology, 1830-1860.. The Virtual Laboratory (ISSN 1866-4784), https://vlp.mpiwg-berlin.mpg.de/references?id=art4&page=p0005 |
||
